Pellet Mills for Biomass, Wood and Feed Pellet Production

TCPEL pellet mill for biomass and wood pellet production

Model recommendation depends on raw material, moisture, pellet diameter, target capacity, voltage and working hours.

Brand	TCPEL
Reference model	TCZL850 ring die pellet mill
Category	Biomass and wood pellet mill
Typical capacity	Around 3-3.5 t/h, depending on raw material
Main motor	220 kW reference configuration
Project scope	Single machine or complete line
Quotation info	Confirm material, capacity, pellet size, voltage and destination port

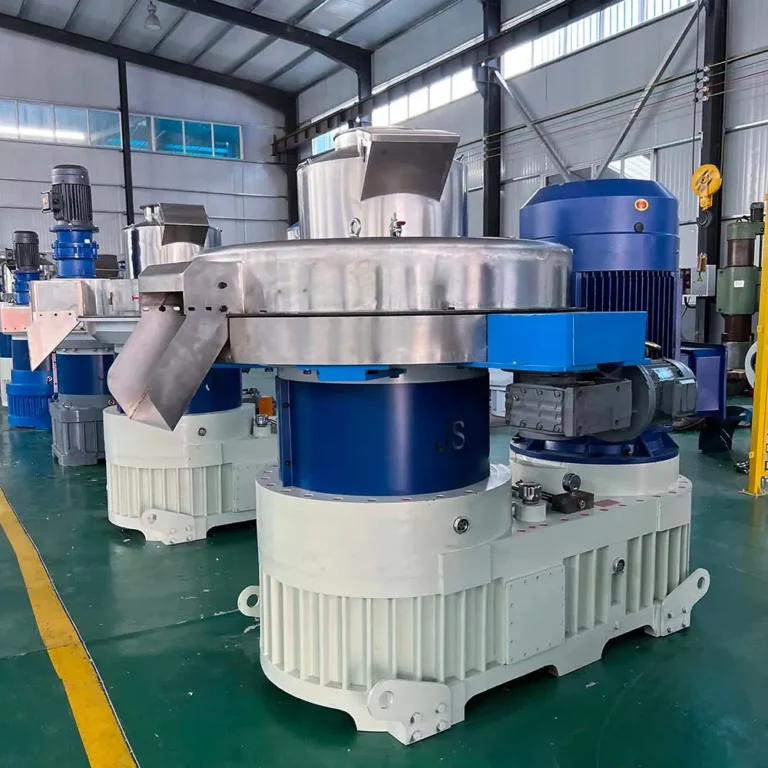

TCZL850 pellet mill working video

View the pellet mill working test on this page without loading the player before click.

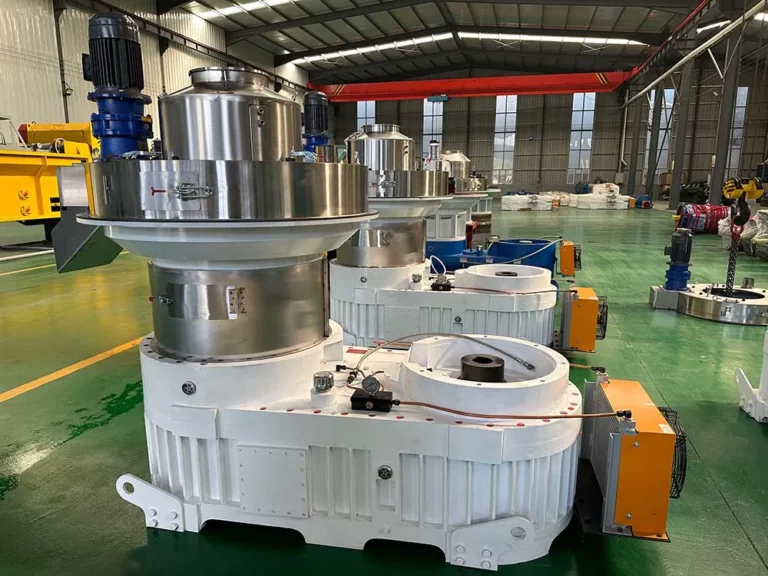

Pellet mill production and stock video

View the pellet mill production reference video on this page.

TCZL850 Pellet Mill Reference Model

TCPEL pellet mills are used to press prepared biomass, wood, agricultural residue and feed materials into dense pellets. This page uses the TCZL850 ring die pellet mill as a high-capacity reference model, while final selection should be confirmed according to raw material, moisture, pellet diameter, capacity and complete line requirements.

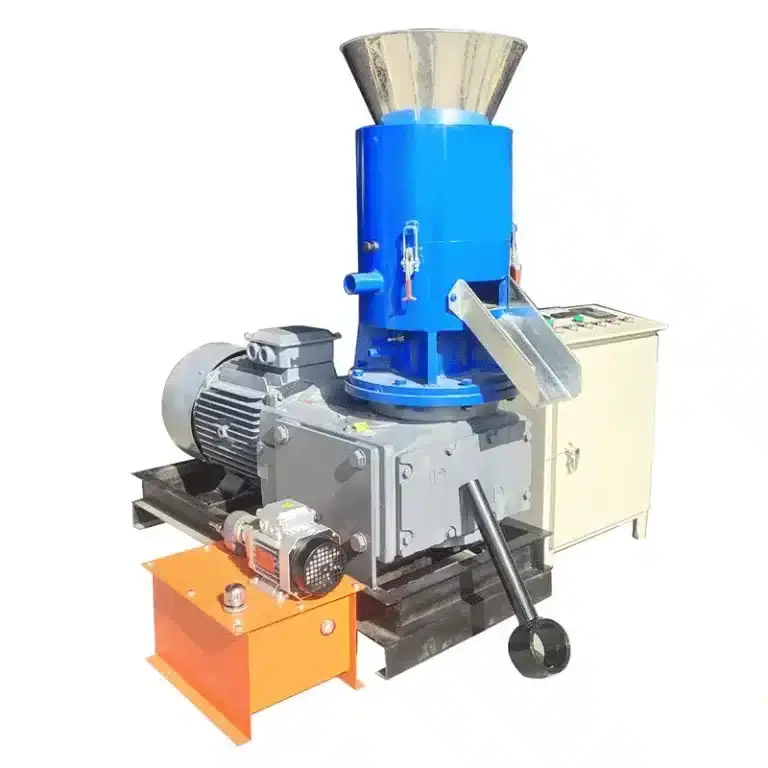

For complete pellet projects, the pellet mill should be matched with a broyeur à marteaux, sécheur rotatif, cooler, screener, packing machine and conveying system. If your project is small or for farm-scale use, compare a machine à granuler à filière plate first. For the full biomass pelletizing section, review the machine à granuler le bois page as well.

Pellet Mill Features and Selection Points

The machine frame is designed for continuous industrial pellet production. Foundation, installation space, feeding height and discharge direction should be confirmed before final layout.

Suitable raw materials may include sawdust, wood chips after grinding, rice husk, palm residue, straw and other biomass. Moisture, particle size and material cleanliness should be checked before pelletizing.

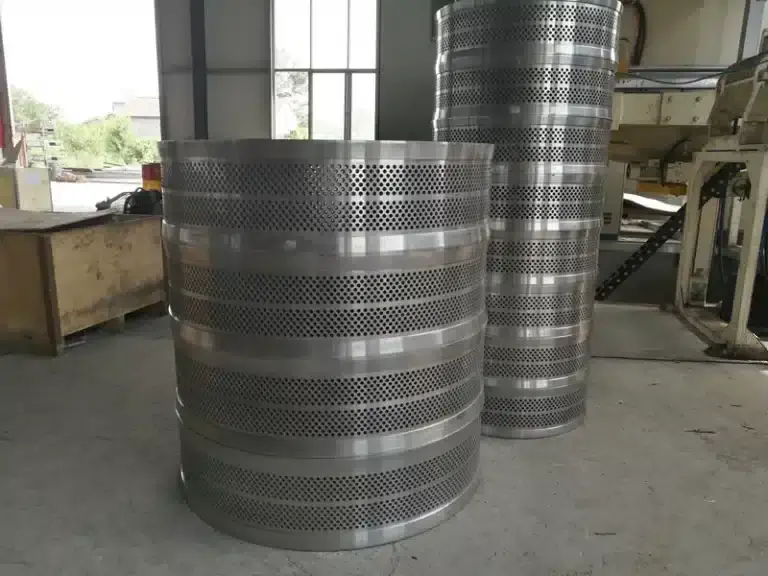

Ring die material, hole size and compression ratio should match the raw material and pellet diameter. Die service life depends on formula, impurities, lubrication and operating hours.

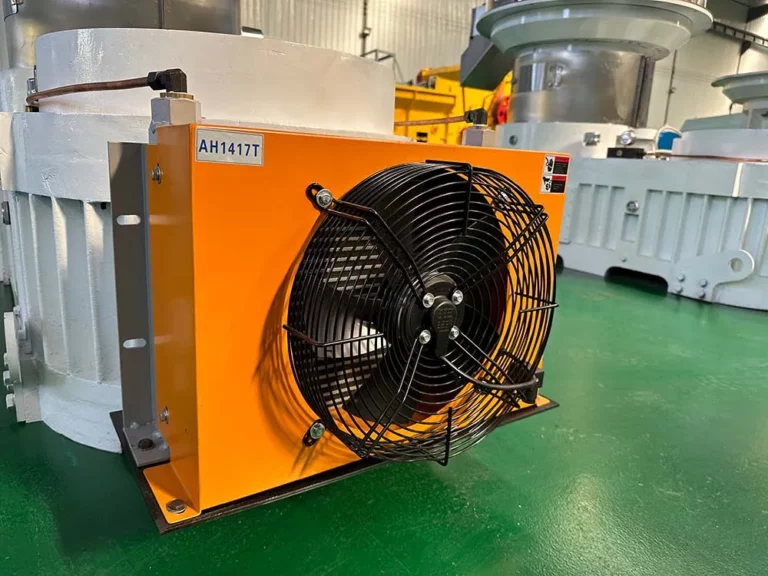

Cooling around the pelletizing area supports more stable operation during long shifts. The complete line should still include a pellet cooler before screening and packing.

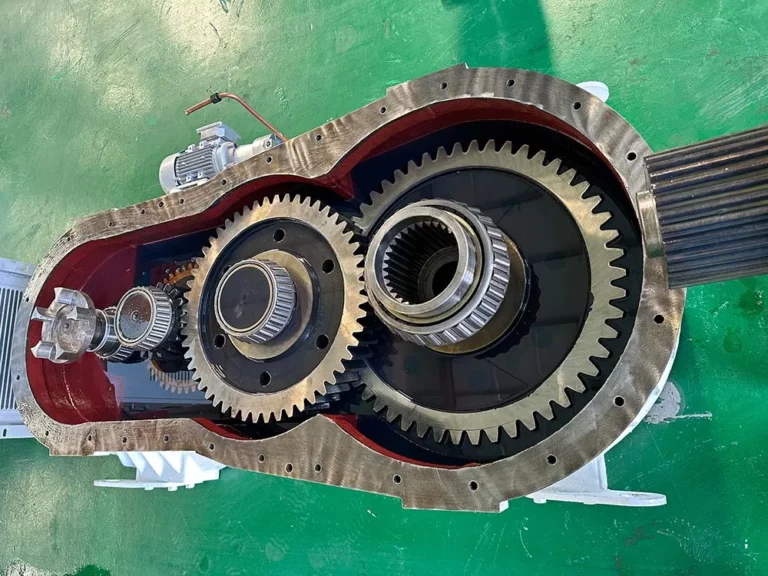

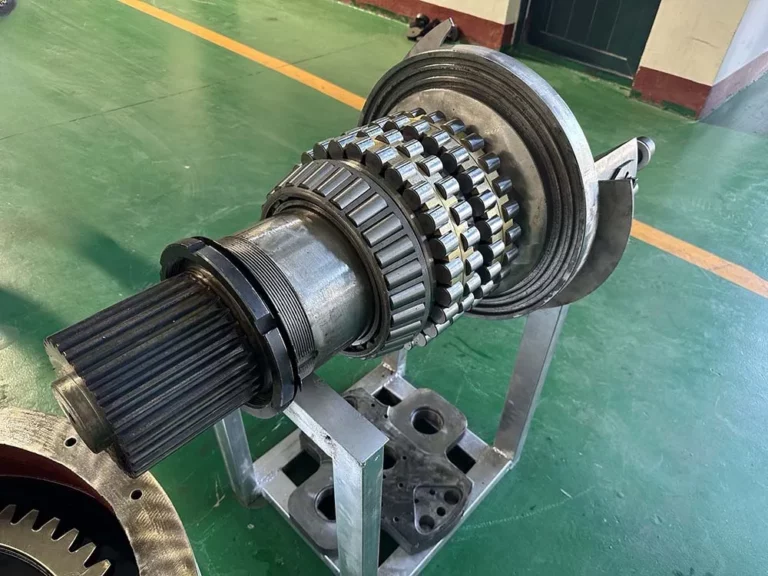

The main shaft and transmission parts should be inspected and lubricated according to the maintenance schedule. Stable transmission helps maintain pellet quality and reduce abnormal wear.

Vertical ring die feeding can support biomass pellet production when raw material is prepared correctly. For animal feed projects, formula, conditioner requirement and pellet diameter should be checked separately.

Pellet Mill Reference Parameters

Objet	TCZL850 reference configuration
Type	Ring die pellet mill for biomass and wood pellet production
Typical output	Around 3-3.5 t/h, depending on raw material, moisture, die and working conditions
Main motor	220 kW reference configuration
Pellet diameter	Commonly 6 mm, 8 mm, 10 mm or 12 mm; final die depends on project requirement
Ring die material	4Cr13 stainless steel reference material

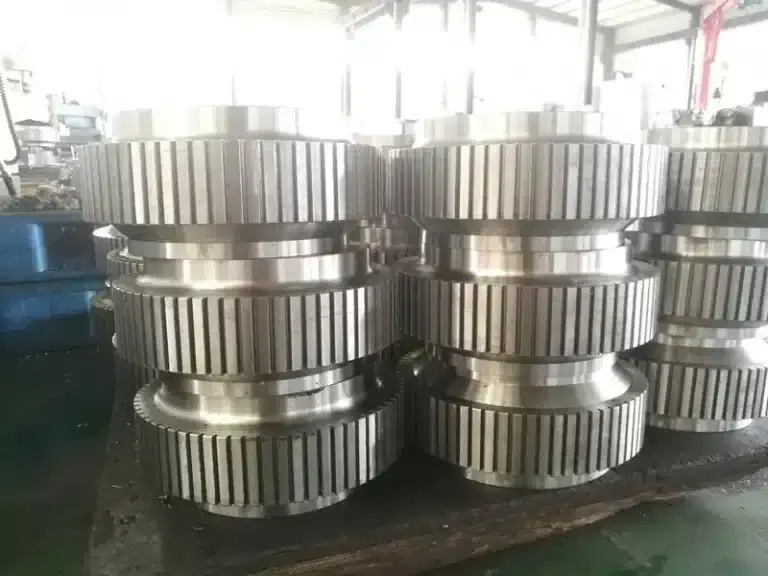

Roller shell	55# steel reference material
Machine weight	About 12 t reference value
Machine size	About 3000 x 1500 x 2300 mm reference value

Use these parameters as a model reference only. TCPEL should confirm the final model, die, motor, voltage and auxiliary equipment after reviewing your raw material and target output.

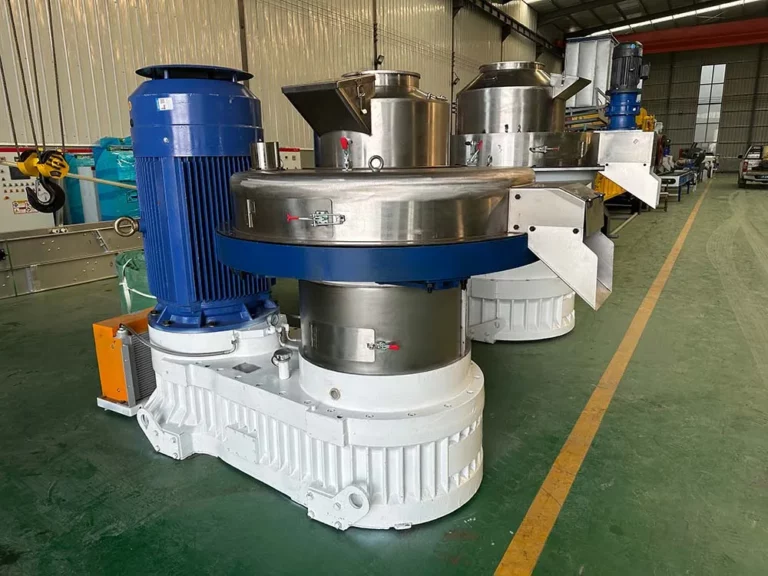

Pellet Mill Detailed Pictures

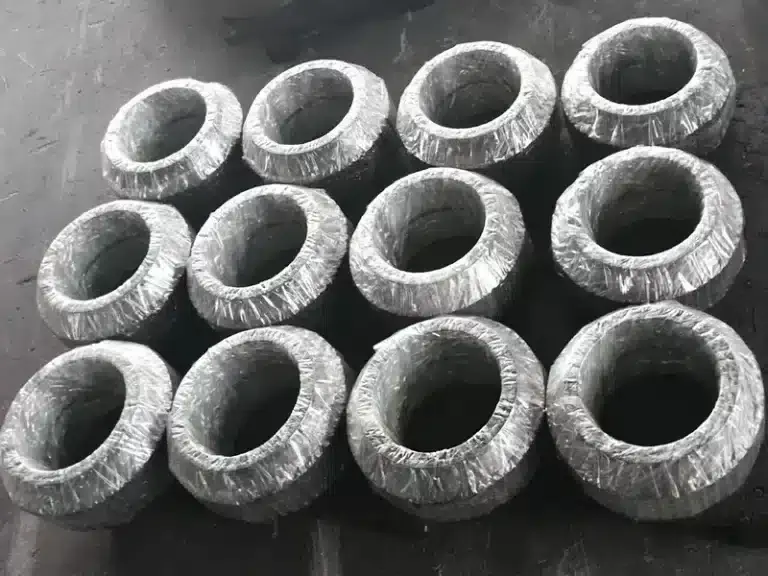

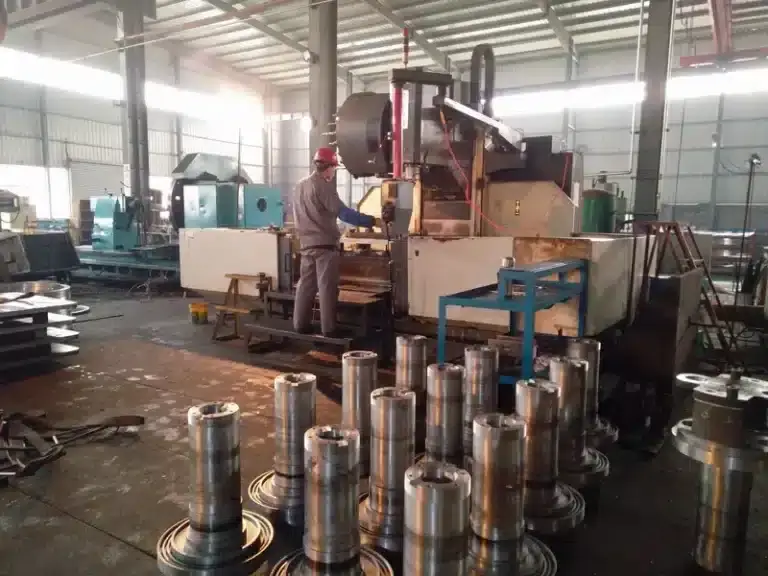

Pellet Mill Spare Parts

Pellet Mills Buying Guide

View pellet mill selection details

What Is a Pellet Mill?

A pellet mill presses prepared powder or small particles through a die to form pellets. It does not replace crushing, drying or mixing. Stable pellet production usually requires suitable particle size, proper moisture, consistent feeding and the correct die configuration.

Where a Pellet Mill Fits in a Production Line

Crushing or grinding: prepare smaller particles with a hammer mill or crusher.
Drying: reduce moisture with a dryer when raw material is too wet.
Granulation : press prepared material through the die and rollers.
Cooling: cool hot pellets before screening and packing.
Packing: pack finished pellets according to storage or export requirements.

How to Choose a Pellet Mill

Selection should start from raw material, target capacity, pellet diameter, local voltage, available workshop space and daily operating hours. For biomass pellets, moisture and powder size are especially important. For feed pellets, formula, conditioning and animal type should also be reviewed.

Single Machine or Complete Line

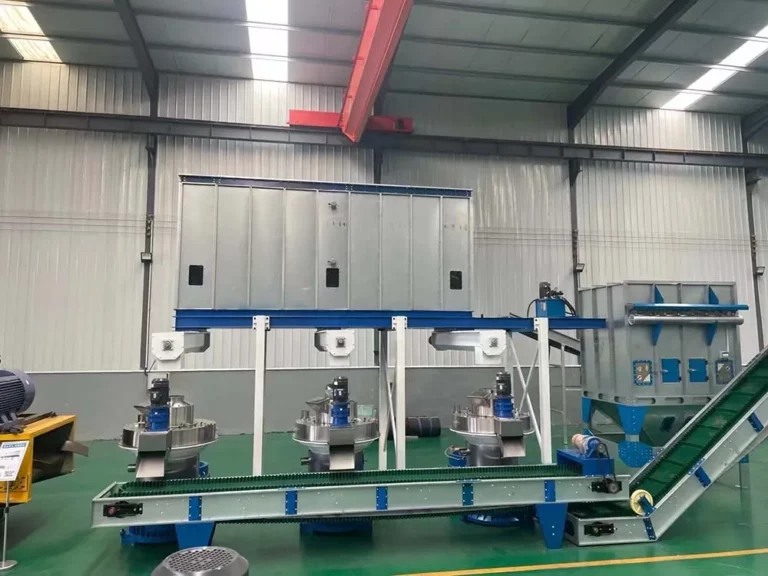

The pellet mill can be supplied as a single machine or combined with crusher, dryer, mixer, conveyor, cooler, screener and packing machine. A complete line layout should be confirmed before manufacturing so that feeding height, discharge direction and maintenance space are workable.

Information Needed Before Quotation

For a suitable pellet mill quotation, please send:

Raw material type and photos or videos.
Moisture and particle size after crushing or grinding.
Target pellet diameter and expected capacity.
Working hours per day and local voltage.
Whether the project needs crusher, dryer, cooler, screener, packing machine or a complete line.

Send pellet mill requirements by WhatsApp.

Pellet Mill FAQ

What materials can be used in a pellet mill?

Prepared sawdust, wood powder, rice husk, palm residue, straw, biomass powder and some feed materials can be used after proper crushing, drying or mixing.

Is the TCZL850 suitable for every project?

No. TCZL850 is a high-capacity reference model. Smaller output or different materials may require another model.

What moisture is suitable before pelletizing?

Moisture depends on raw material and pellet type. Many biomass projects need drying before pelletizing.

Can TCPEL provide a complete pellet line?

Yes. TCPEL can combine pellet mill, crusher, dryer, cooler, screener, conveyor and packing machine according to project scope.

What information is needed before quotation?

Send raw material, moisture, target capacity, pellet diameter, voltage, working hours and destination port.
