Biomass Pellet Machine for Wood and Agricultural Waste

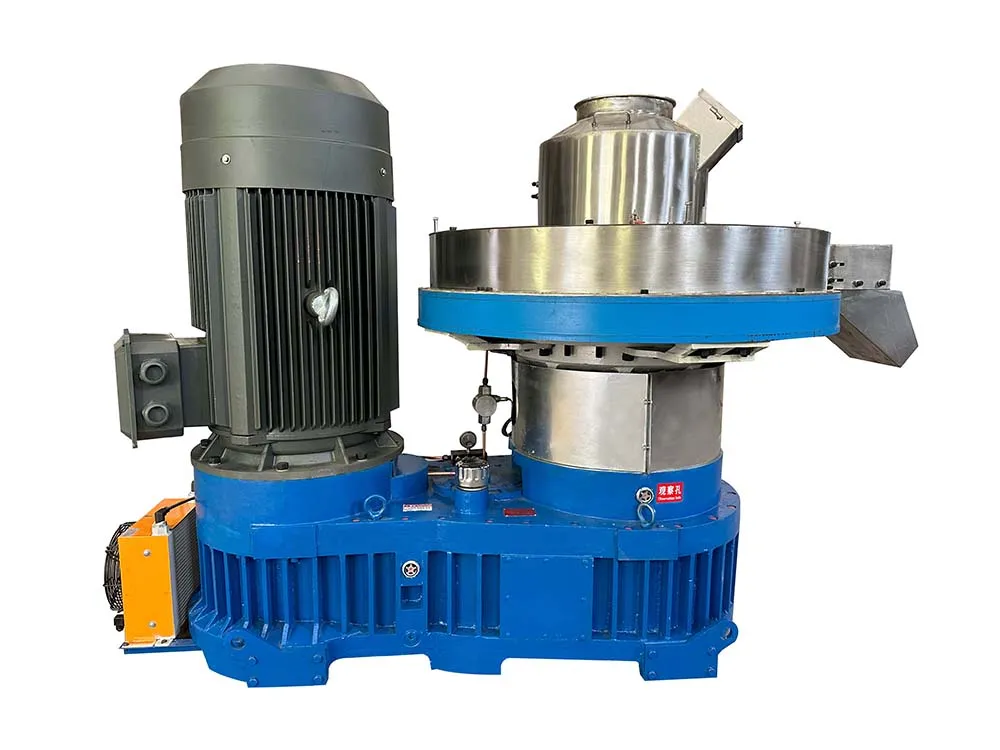

Vertical ring die biomass pellet machine for prepared wood and agricultural residues.
Marque :
TCPEL
Modèle :
TCZL560
Machine Type :
Machine à pellets de biomasse à filière annulaire verticale
Capacité :
Typical 1-1.5 t/h, depending on raw material and pellet diameter
Depends on model, die, voltage and line scope
Quotation :
Order Terms :
To be confirmed according to confirmed order scope
Lead Time :
To be confirmed after configuration and production schedule
View the biomass pellet machine test on this page without loading the player until you choose to play it.

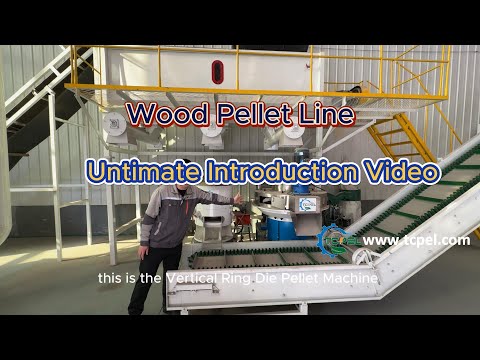

View the pelletizing test run on this page with a click-to-load player.
Introduction de la machine à boulettes de biomasse
TCPEL supplies vertical ring die biomass pellet machines for making fuel pellets from sawdust, wood chips, straw, rice husk, palm waste and other agricultural residues. The machine can be used as a single pellet mill or as part of a complete biomass pellet line.
Stable output depends on raw material size, moisture, pellet diameter, die and roller condition, feeding stability and working hours. For most biomass projects, the pellet mill should be selected together with a broyeur à marteaux, sécheur rotatif, cooler, screener and packing machine.
Biomass Pellet Machine Features
Heavy-duty machine structure supports continuous biomass pellet production. Actual running hours depend on material condition, lubrication, die and roller condition and operation practice.
Suitable for many prepared biomass materials, including sawdust, wood shavings, rice husk, straw, palm waste and similar agricultural residues.
Ring die material and hole size should be selected according to pellet diameter, raw material abrasiveness and expected working hours.
Cooling and air-flow design helps control the pelletizing area temperature during continuous operation.
Main shaft and transmission parts should be inspected and lubricated regularly for stable pellet quality.
Les matrices de pose verticales alimentent directement une large gamme d'applications et offrent une excellente dissipation de la chaleur. Elles offrent une meilleure efficacité à un coût réduit.
Biomass Pellet Machine Parameter Reference
The data below is a model reference only. Final capacity depends on raw material, moisture, pellet diameter, die condition, feeding stability and operating hours.
| Objet | TCZL560 reference | TCZL700 reference |
|---|---|---|
| Machine type | Vertical ring die biomass pellet machine | Vertical ring die biomass pellet machine |
| Typical output | About 1-1.5 t/h, depending on material and pellet diameter | About 2-2.5 t/h, depending on material and pellet diameter |
| Main motor | 90 kW reference | 160 kW reference |
| Raw materials | Sawdust, wood chips after grinding, straw, rice husk and agricultural residues | Sawdust, wood chips after grinding, straw, rice husk and agricultural residues |
| Pellet diameter | Commonly 6 mm, 8 mm, 10 mm or 12 mm | Commonly 6 mm, 8 mm, 10 mm or 12 mm |
| Pre-treatment | Hammer mill and dryer may be required | Hammer mill and dryer may be required |
| Line equipment | Crusher, hammer mill, dryer, conveyor, pellet mill, cooler, screener and packing machine | Crusher, hammer mill, dryer, conveyor, pellet mill, cooler, screener and packing machine |
Machine Details and Workshop Photos
Biomass Pellet Machine Spare Parts
Biomass Pellet Machine Buying Guide
Biomass Pellet Machine Buying Guide
Use this guide to check raw material preparation, moisture, pellet diameter, capacity, spare parts and complete line requirements before choosing a biomass pellet machine.
What is a biomass pellet machine?
A biomass pellet machine compresses prepared biomass material through a die to make solid fuel pellets. It is commonly used for sawdust, wood chips after grinding, shavings, straw, rice husk, palm waste and other agricultural residues.
How does a biomass pellet machine work?
Prepared material is fed into the pelletizing chamber. Rollers press the material through the ring die holes, and the compressed material is cut into pellets. Stable feeding, proper moisture and suitable particle size are important for consistent output.
What preparation is needed before pelletizing?
Oversized raw material normally needs crushing or hammer milling. Wet material may need drying. Foreign objects should be removed to protect the die, rollers and transmission parts.
How should I choose machine capacity?
Capacity should match raw material supply, working hours, target output, pellet diameter and downstream cooling or packing capacity. Output is typical and depends on material condition and operation.
Flat die or ring die biomass pellet machine?
Flat die machines are usually used for smaller projects or trial production. Vertical ring die machines are more suitable for higher-capacity biomass pellet production lines.
What affects pellet quality?
Particle size, moisture, formula, die compression ratio, roller condition, feeding stability and cooling all affect pellet density, surface quality and durability.
Can TCPEL supply a complete line?
Yes. TCPEL can supply a single pellet machine or a complete line with crusher, hammer mill, rotary dryer, conveyor, pellet mill, cooler, screener and packing machine.
What should I send before quotation?
Send raw material, moisture, material size, required capacity, pellet diameter, voltage, working hours, available space and destination port. TCPEL can then recommend a suitable model or line configuration.
What to Send Before Quotation
To recommend a suitable biomass pellet machine or complete line, please send:
- Raw material type and photos, such as sawdust, wood chips, straw, husk or palm waste.
- Moisture content and maximum material size before pelletizing.
- Target capacity, pellet diameter, working hours and local voltage.
- Whether crusher, hammer mill, dryer, cooler, screener or packing machine is required.
- Destination port and available installation space.
Send these details by WhatsApp for a model and line configuration recommendation.
