Bamboo Powder Dyring Solution

Bamboo powder is the powder after grinding bamboo. As a new type of environmentally friendly material, bamboo powder is widely used in chemical industry and daily life. The production of bamboo powder has high economic benefits. In the process of producing bamboo powder, drying is a very important process. Today we will give you a detailed explanation of the bamboo powder drying process and the entire working process of our bamboo powder dryer, hope it will be helpful to you.

Bamboo Powder Applications

Bamboo powder are a commonly used filling additive and a new type of energy-saving and environmentally friendly raw material. Bamboo powder is not only a commonly used filling additive, but also can be used to produce a variety of products. It is applicable to a wide range of industries and can be used as bamboo plastic products, fuel, mosquito coils, leather, and clothing, papermaking, electrical appliances, daily necessities, coatings, cat litter, chemicals, insulation materials, outdoor decoration materials, building materials and other raw materials for products.

How To Dry Bamboo Powder-Bamboo Powder Dryer

In the south of China, especially Hunan and Hubei provinces, there are large areas of bamboo forests. Many companies have started producing bamboo powder. We have a customer who purchased our bamboo powder dryer. Below we will introduce Let me explain to you our bamboo powder drying plan in detail according to this project.

The customer’s raw material is bamboo sawdust, and the moisture content of the raw material is 35%-40%. The customer requires that the moisture content of the bamboo powder after drying should be 10%. The size of the final bamboo powder is controlled at 100 mesh. Our entire drying process includes Hammer Mill–Rotary Dryer-Spray Tower-Ultrafine Grinder-Ultrafine Screening Machine

This is the bamboo sawdust material, size is still very big.

Using a forklift to load the raw material to the belt conveyor.

On the belt conveyor, we also added a magnetic iron remover, to remove the iron materials inside the materials.

Using a hammer mill to crush the big size bamboo sawdust into smaller size.

This is the hammer mill feeding mouth.

This is the crushed bamboo sawdust, size within 3mm

To make sure the bamboo powder color not change during the drying process, we are using the indirect heating system, we will burn the wood scrap to generate hot air, below is our biomass burner

This is the connection of the heating stove and our rotary dryer

The rotary dryer will rotate by a driven motor, power is 7.5kw.

The rotary dryer we are using is φ2*14m, diameter is 2meters, length is 14meters. The total capacity is 2t/h, from moisture 40% to 10%.

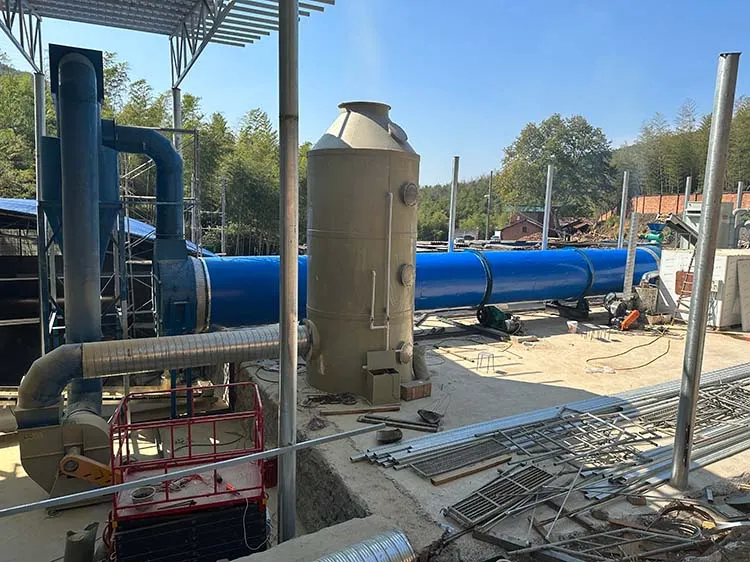

To prevent pollution emission problems, we also using a water spray tower connect with our rotary dryer, Spray tower is used for exhaust gas absorption, purification, flue gas dust removal, cooling, etc.

The dried bamboo powder will be discharged by air lock in the end, on the output conveyor, we also added a magnetic iron remover.

This is dried bamboo sawdust, moisture within 10%

Customer also added a ultrafine grinder, to crush the sawdust into smaller size ,within 100mesh.

After the ultrafine grinder, connect with a ultrafine screener, to sort out the fine bamboo powder.

This is the ultrafine screener inside structure

We also added a pulse jet dust collector for the whole system, to make sure the whole working environment clean and dust-free.

This is the final ultrafine bamboo powder.
