Drum Chippers- The Beginner's Guide

drum chippers

Are you thinking about buying drum chippers for your home or business? If so, you'll want to read through this comprehensive guide first. From a forestry wood drum chipper to an industrial drum style wood chipper, there are all kinds of drum chippers out there to help you get rid of unwanted wood. You can even find a mobile drum chipper for sale! Chances are, if you can think of it, you can find it. But how do you choose the best one?

In this guide, we’ll tell you everything you could want to know about drum chippers – we will cover everything from how these tools work to where you can buy one when you’re ready. Let’s dive in!

What is a Drum Chipper?

Before we go too far in-depth about how it work, let’s address the most pressing question – what exactly are drum chipper?
Drum chippers are specific types of wood chippers used to reduce wood (usually large tree limbs, branches, or trunks) into smaller wood chips. These are often portable, with the ability to mount them on wheels and frames that can then be towed behind tractors, vans, or trucks.
These tools are used commercially in wood pellet plants. Here, they are used to turn large bits of wood into usable chips that can then be processed even further into things like particle boards.
Drum chippers consist of a base, feeding rollers, knife rollers, a belt conveyor, and a simple hydraulic system. Generally, the main body is welded into a high-strength steel plate, with a set of two to four knives installed on each roller.
In addition to drum chippers, you can buy other types of wood chippers, too, including disk chippers and high torque rollers. Most chippers are electric and powered by a PTO, but there are some gas-powered chippers out there as well.

How Does a Drum Chipper Work?

Now that you know exactly what a drum chipper is, here’s how to use one.
Wood chippers contain a variety of parts, including a collar, hopper, a chipper, and a collection bin (though this last item can be optional).
Drum chippers have large, motor-operated drums. These drums draw in material, then cut or shred it before directing it out a chute. These machines work quickly, making them ideal for commercial operations, but they can be quite loud.
They also require careful operation – the operator has to load equipment thoughtfully in order to avoid jams and blockages.

Additional Information

You may hear drum chippers referred to as chipper drums – don’t get confused! The two are one and the same.

Drum chippers are different from other types of wood chippers in how they operate. These, again, consist of large steel drums powered by motors. The drum tends to be mounted parallel to the hopper, spinning toward the chute as it cuts the material into chips. The chips are then propelled out of the discharge chute.
The diameter of wood that a chipper drum can handle varies based on the size of the machine. Most can handle wood material that is anywhere between nine and 24 inches in diameter.
In conventional chipper drums, the drum will be used as the feeding mechanism, both drawing the material through and chipping it. Also known as chuck and duck chippers, these chipper drums can be somewhat risky to use. The material is dropped so quickly into the drum that it is easy for them to kick back and injure the operator.
For the most part, hydraulically-fed chippers have now replaced most conventionally fed machines. These use hydraulic wheels to regulate the rate of feed, so it isn’t going in and out as quickly.

Drum Chipper Vs. Disc Chipper

As mentioned earlier, there are several main types of wood chippers you can buy – drum chippers, disc chippers, and high torque rollers.
Drum and disc chippers tend to be the most common types of wood chippers by far. Both types have been in use for many years and have their own plusses and minuses.

How Do Disc Chippers Work?

We already told you all about how it work – here’s a quick overview of how disc chippers operate.

Disc chippers work a bit like drum chippers. The technology is old, dating back to 1922. Reversible hydraulically-powered wheels draw material from the hopper back toward the disk, which is mounted perpendicular to the material. The disk spins and the knives of the wood chipper cut the material up into chips.
These are then discarded from the chute by flanges that are positioned on the drum.
Disc chippers can usually handle material diameter that is 6 to 19 inches, though there are industrial-grade chippers with discs that can handle material up to 160 inches in diameter and require up to 5,000 horsepower to operate! These kinds of wood chippers are often used in industrial settings to produce things like particleboard.

Which is Better – Disc Chipper or Drum Chipper?

Neither a drum chipper nor a disc chipper is better than the other – it all depends on your goals and priorities when you’re chipping wood.
For example, disc chippers aren’t as efficient as drum chippers. They use more energy and take more power.
Disc chippers, on the other hand, tend to produce chips that are more uniform, particularly when fed with quality raw material. This makes them ideal for commercial tree care companies that have large volumes of wood to deal with.
However, the problem with disc chippers is that the quality isn’t always as high if you’re dealing with raw material that’s not the best quality. For example, if you start feeding smaller branches or tops, you’re going to find that the chips are not uniform in size.
Therefore, drum chippers reign supreme when it comes to dealing with smaller branches and twigs. While a professional logger or arborist might want a commercial-grade disc chipper for cleaning up large pieces of debris on the job, the average homeowner wanting to clean up storm debris for use as mulch in the garden will do just fine with a basic rotary drum chipper instead.
Drum chippers may be slightly safer than disc chippers, though again, this is always variable. Most new drum chippers are equipped with safety features such as reversible feed systems. This allows newer-style drum chippers to handle large diameter materials (up to 20 inches) without the operator having to worry about any kickback or accidental discharge of wood.
Another benefit of using drum chippers instead of disc chippers is that they are slightly easier to maintain. It’s easier to change the knives on it (although the knives can be quite heavy, especially on something like a larger 12-inch drum chipper machine).
Drum chippers tend to make faster work on straight wood, while they aren’t as efficient on crooked or contorted branches. Disc chippers tend to be more compact, while drum chippers are lighter in weight.
So other benefits of drum chippers include:
● They offer better rotational energy and can cut a much wider swath than disc chippers
● They are more compact and often made to be more durable (and stronger)
● They can be easier to find, especially if you are looking for a machine that is 12 inches or larger
Ultimately, deciding between a drum or disc chipper will again come down to your intended use for the machine and what kind of wood you plan on chipping.



Drum Chippers

Disc Chippers

Structural Differences

The drum is used as a feeding mechanism to pull wood into a set of knives and then discharge the chips

Wheels draw material from the hopper back toward the disk; knives of the wood chipper cut the material up into chips and then discard them by flanges

Avg. Material Size

Up to 24 inches

Up to 19 inches

Application (When to Use)

Great for straight wood or casual use

Best for crooked, contorted branches or for professional arborists with large amounts of debris

Biggest Benefits

More compact and durable easy to maintain

Knives are lighter and more efficient for larger jobs

Concerns to Note

Can cause kickback on crooked wood

Wood chips aren’t always a uniform size

Advantages of Drum Chippers

When you’re shopping for a drum chipper, you might be wondering why you should choose this kind of chipper over others.
There are several key advantages posed by drum chippers.
For one, these machines are able to cut and crush raw material much better than other types – at a rate of more than 95% more efficiency, in fact. They can handle a higher capacity of wood and are easy to operate.
Not only that, but drum chippers tend to be easy to maintain and are made out of the best materials.
In addition, most large drum chipper manufacturer companies will tell you that drum chippers produce better quality chips. Drum chippers produce wood chips that are more uniform in size, both in terms of their average length and thickness. They have larger fractions of accepted chips and smaller fractions of fines and pin chips. Overall, the quality is just better!

How Fast Does a Chipper Drum Spin?

When you’re operating a drum chipper, it’s good to know exactly what you’re getting yourself into!
Forestry wood drum chipper spin quickly with the rate of speed determined by the size and capacity of your machine. Some spin at a maximum rate of 540 RPMs (revolutions per minute), while others can achieve up to 3000 RPMs.
In general, 540 is the standard PTO speed for a small drum wood chipper. That said, there are some modern drum chippers that are operated off the PTO shaft of a tractor that can spin faster (around 1000 RPMs). It’s uncommon to see the higher RPMs unless it’s a very expensive, advanced commercial machine.
How Do You Use an Industrial Wood Chipper?
Whether you’re just cleaning up a bit of debris after a storm or you work for a professional arborist company, it’s helpful to know how to use an industrial drum-style wood chipper.
An industrial wood chipper can be a bit more complicated than a basic one, but they operate more or less in the same fashion. The chipper should be placed on level ground.

A wood chipper has a series of knives that cuts the wood into small bits as you feed it into the hopper. Feed the limbs, butt-first, into the hopper, releasing the branches as the rollers grip them. Some drip chippers have a mechanical feed bar along with quick stop and reverse feed control as safety features.
When feeding a shorter limb, use a longer branch to feed it in. Inspect each branch before feeding it for stones or other items that could damage the knives.
Once you place a branch into the hopper, roller bars grip the limbs, grind them, and then wood chips are made in a horizontal chipper drum before being forced out of a discharge chute. You’ll need to sharpen the blades regularly, or the wood chips will start to look more like chunks than chips.
Always follow the manufacturer’s guidelines for safety and operation and wear heavy-duty gloves while you’re working. It’s a good idea to wear eye and ear protection, too, along with close-fitting clothes.

Can a Wood Chipper Shred a Body?

This is a gruesome question that may come to mind after watching films such as Fargo, in which Steve Buscemi’s character is horrifically fed through a wood chipper.
It’s a dark picture, and frankly, one that you probably won’t ever have to ask yourself! However, wood chippers can easily shred a body. Bones don’t fare well against the shearing and torsion forces of a wood chipper.
Hopefully, you’re not planning on murdering anyone with your wood chipper! And obviously, you should never put someone through your wood chipper (do we have to tell you that?). Yet, it’s important to understand the power of this machine in relation to the human body as it serves as an important reminder – you’ve got to be careful while operating it!
Again, always follow the manufacturer’s recommendations for safety and wear safety goggles, hearing protection, and clothes that won’t get caught in the machine. Wood chippers are useful tools – but they don’t discriminate between wood and people!

Conclusion

So there you have it! Everything you need to know about drum chippers to help you make an informed decision when you buy – or decide to start one up on the job.
There are all kinds of machines out there to choose from, so regardless of your budget, the type of job you’re trying to tackle, and your personal preferences, you should be able to find a drum chipper to suit your needs.

TCPEL Drum Wood Chippers Introduction

TCPEL is a leading drum chippers manufacturer and supplier in China. We have our own factory and our products have been exported to over 100 countries.

We design our drum chippers in a manner that it is able to match customer requirement and work as per industry standard. Our team of skilled designers ensures that every product whether compact or commercial is highly effective and gives the desired outcome with minimum power consumption.

TCPEL Drum Chippers Features

Our drum wood chipper has several advantages over our competition. We use high-quality and strong materials to produce a long-lasting machine. Features of our  drum wood chipper emphasize safety and convenience. We strive to make a machine that is not only the safest to use, but also easy to run and maintain.

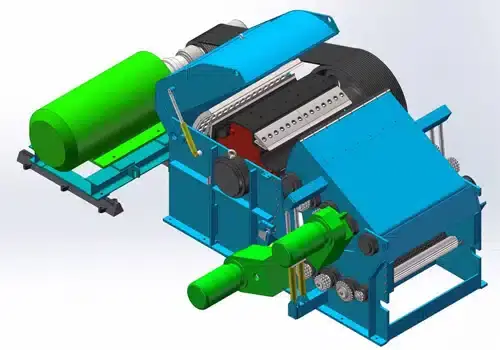

crushing chamber

The crushing chamber of the drum wood chipper is covered for safety and the cover lifts easily by hydraulics. This makes maintenance and changing blades easy and convenient.

drum chipper knife

The blade material is H13. It is harder and resistant to wearing. It can cut hardwood and has a longer service life before needing sharpening. For best results, the blade should be sharpened after every 1000 hours of use.

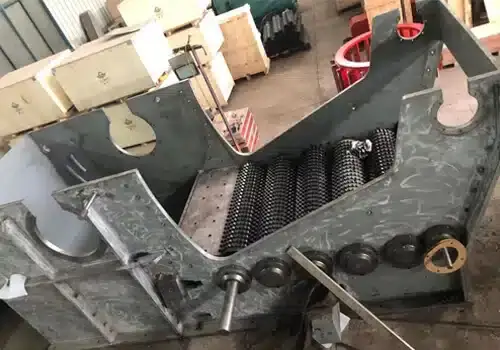

roller

The wood chipper’s feed roller is made of 45# Mn steel. This steel alloy has strong abrasion and a precise bite force, helping to reduce the chance of damage to the chipper.

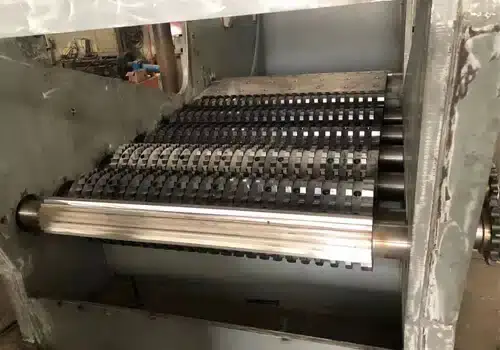

drum chipper body

The body material is strong carbon steel – Q235. This allows it to run steadily without ground foundation.

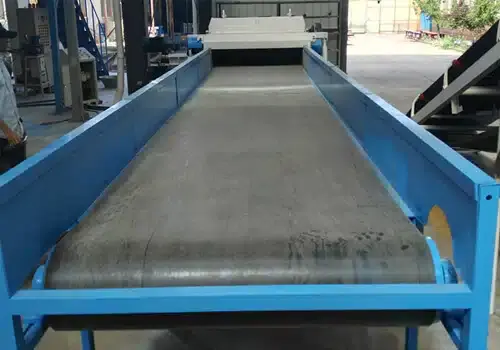

feeding chain conveyor

The feeding chain conveyor feeds the raw material evenly, regardless of size or shape, preventing dangerous blockages.

screen mesh

The screen mesh size can be customized for different sizes to produce end products to specific requirements.

Drum Chippers Parameters

ModelTC216TC217TC218TC2110TC2113TC2113DTC4113TC2116
Main motor (kw)5575110160/185200/220250315/450400/600/710
Infeed roller motor (kw)4+34+44+47.5+7.57.5+5.515+1115+1118.5+18.5
Discharge conveyor belt motor (kw)3337.57.57.511+7.515
Oil pump motor (kw)1.51.51.533333
Feeding size (mm)230×540230×700350×700450×1000450×700450×1000450×1300750×1200
Feeding speed (m/min)3535353535353535
Max dia of log material (mm)230230300400400450450600
Rotor diameter (mm)60060080010001300130013001600
Knife roller speed (rev)550590540530420420355350
Flying knives qty (pcs)2222×332×32×34×3
Bottom knives qty (pcs)1112×112×12×14×1
Wood chip size (mm)30-5030-5030-5030-5030-5030-5030-5030-50
Capacity (t/h)3-55-76-1012-1516-2020-3035-5030-60
Feeding belt conveyor size (mm)40004000600060006000600080005000
Discharge belt conveyor size (mm)6000600080001100011000110001100011000
Main machine size(mm)1800x1900x 12102600x2150x 14002200x2150x 15003150x2799x 14973670x2517x 20504080x3000x 20503550x2300x 19004500x3100x 2600

Drum Chippers Working Video

Wood drum chipper processing waste veneer.

High capacity drum chipper processing wood branches

Tips When Buying a Drum Chipper

In order to serve you better, please try to provide the below information:

1) What is the material to be crushed? If timber, what kind of wood?
2) Hardness?
3) Moisture content?
4) Maximum diameter of the material to be crushed?
5) Maximum length of the material to be crushed?
6) Required production capacity?
7) Required chips size?
8) What will wood chips be used for ? ( making wood pellets? For biomass power plant? Etc)
9) Working location of the machine?
10) Other special requirement which you think necessary to let me know?

Then we will recommend suitable model based on your actual needs.
