What raw materials can be used in a feed pellet machine?

Corn powder, soybean meal, wheat bran, grass powder, alfalfa, straw powder, rice husk powder and premix materials can be used after preparation.

Which model is suitable for 800-1000 kg/h feed production?

TCF300 is the listed typical 800-1000 kg/h model. Final selection should confirm formula, die size, raw material condition and voltage.

Do I need a crusher and mixer before the pellet machine?

Usually yes. Crushing controls particle size, and mixing keeps the formula uniform.

Feed Pellet Machine for Animal Feed Production

Inclined roller feed pellet machine design
TCF models for poultry and livestock feed
Typical 400-600 kg/h to around 3 t/h capacity
Model selection by formula and pellet diameter
Single machine or complete feed pellet line
Machine testing before delivery
Export packing and operation guidance

سياسة الخصوصية الأمان والخصوصية مضمونان 100%

Feed Pellet Machine Selection Overview

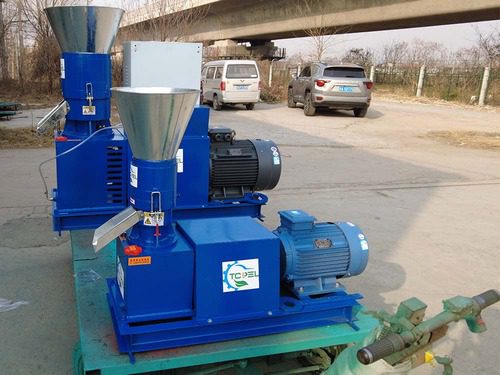

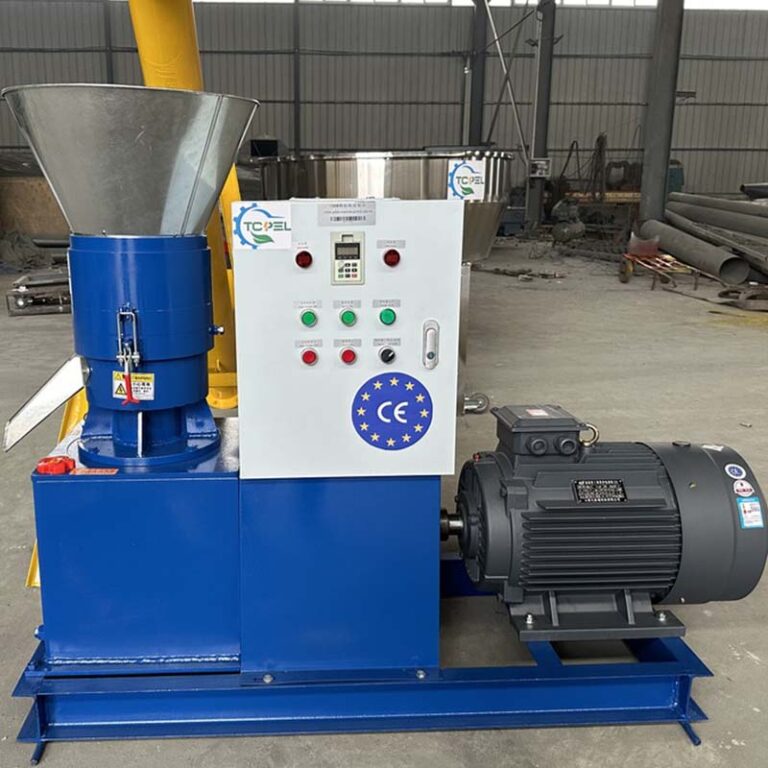

TCPEL supplies TCF series inclined roller feed pellet machines for poultry, cattle, sheep and livestock feed production. Typical capacity ranges from 400-600 kg/h to around 3 t/h, depending on raw material formula, moisture, pellet diameter, die condition and operating hours.

For model selection, send raw material, required capacity, pellet diameter, voltage and destination port. TCPEL can recommend a single machine or a complete line with crusher, mixer, conveyor, cooler, screener and packing machine.

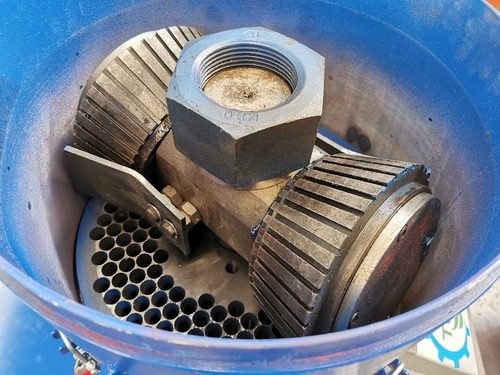

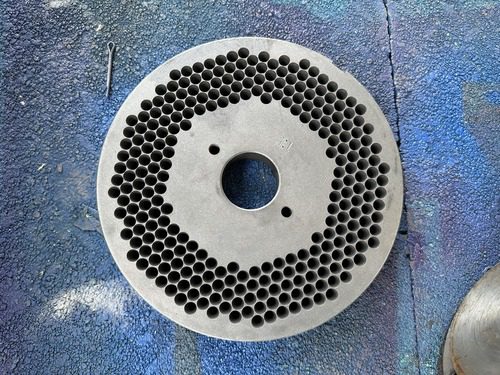

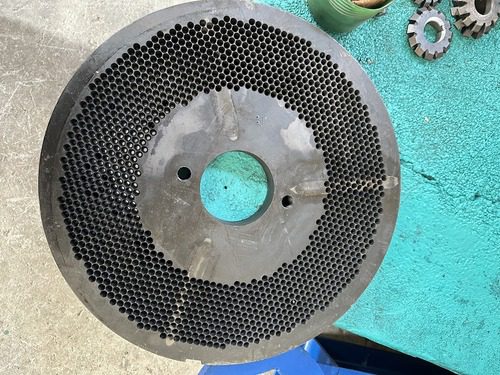

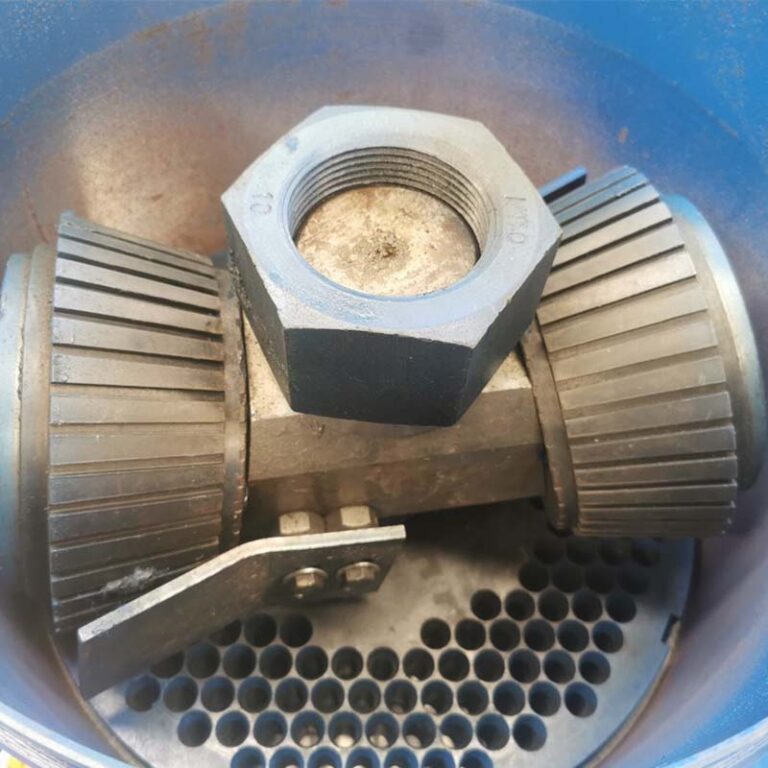

The inclined roller and flat die assembly is designed for stable compression during animal feed pellet production. Die material and roller condition should be checked according to raw material and working hours.

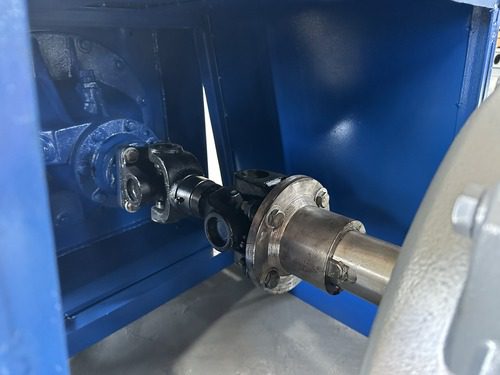

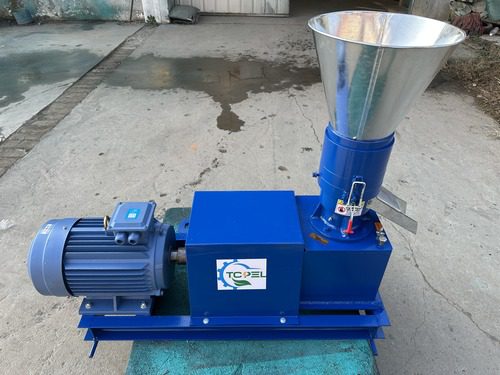

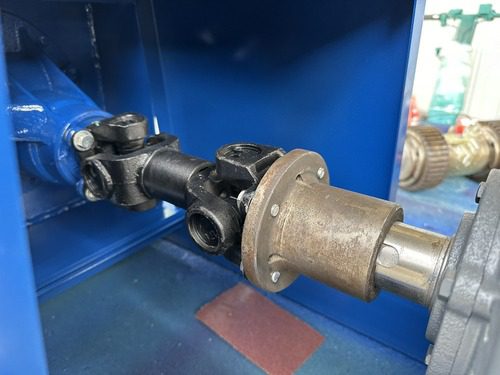

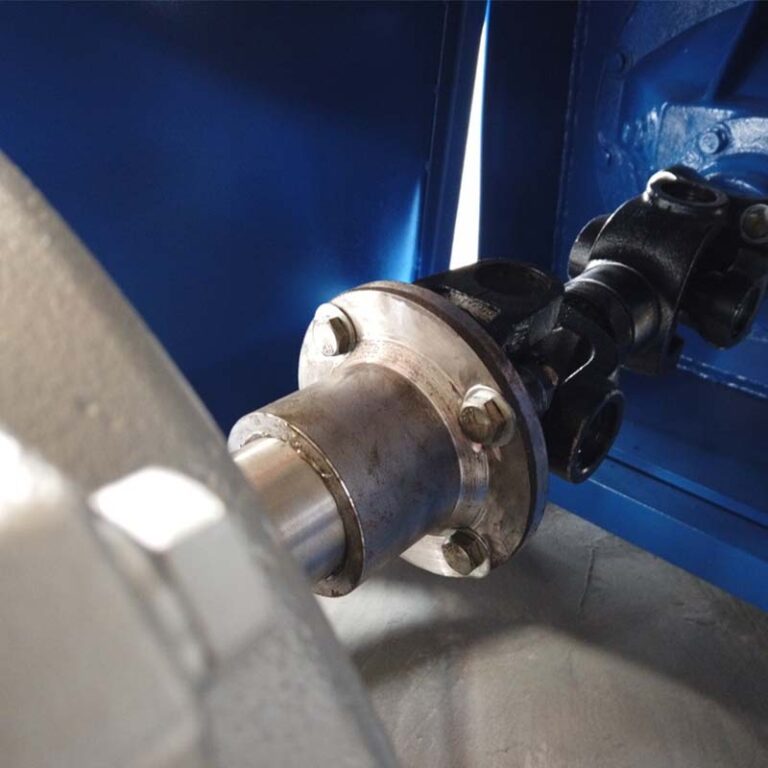

Direct coupling helps keep the machine structure compact and practical for farm or local feed processing layouts. Final motor and electrical configuration should match destination voltage.

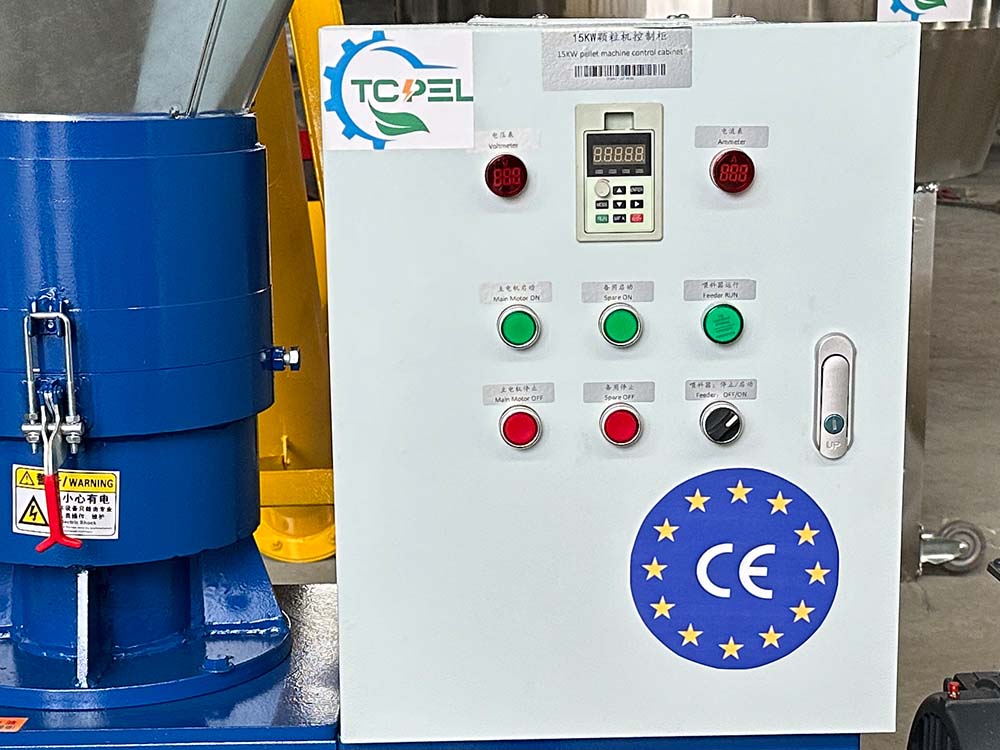

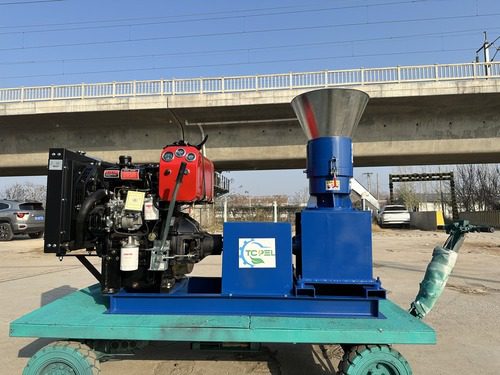

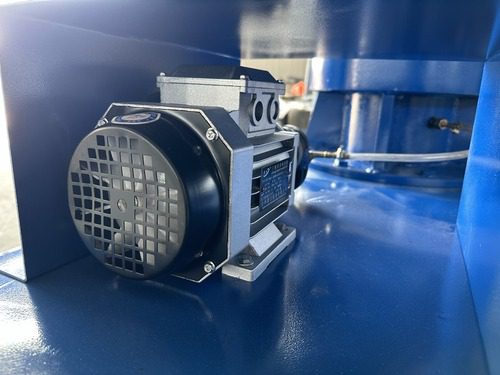

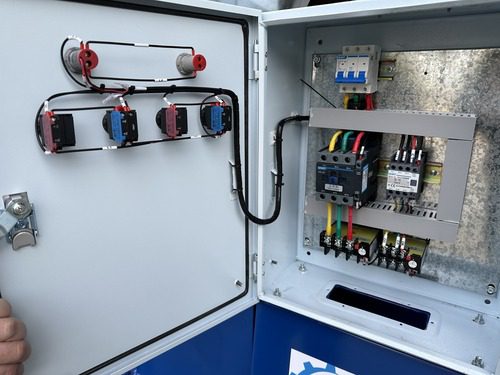

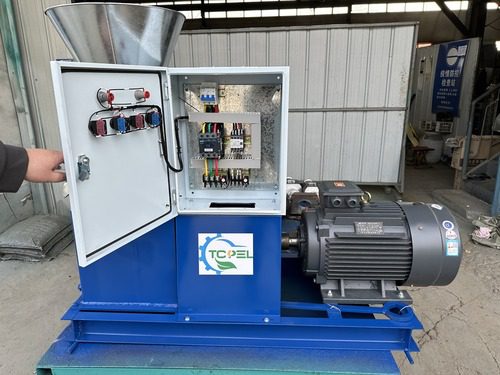

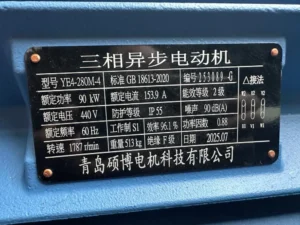

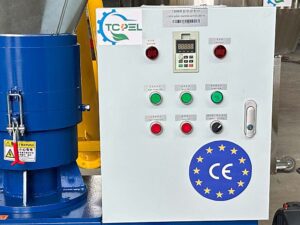

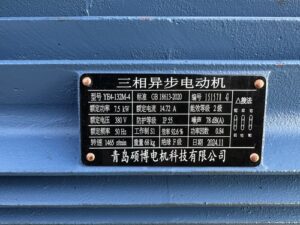

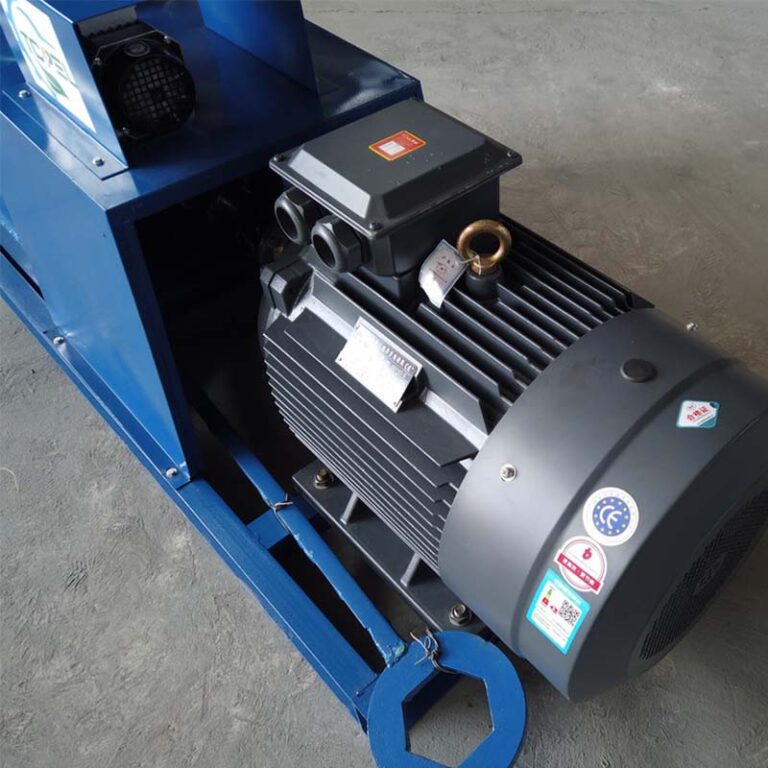

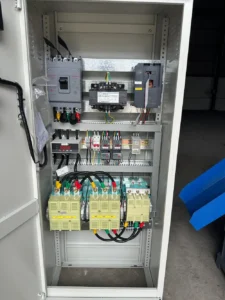

The motor configuration is selected according to model, voltage, frequency and project requirements. TCPEL confirms power supply details before quotation.

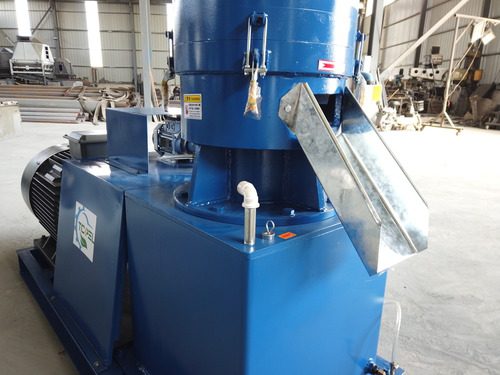

The feeding inlet and discharge area support steady material flow when raw materials are crushed, mixed and adjusted to suitable moisture before pelletizing.

The gearbox and transmission structure should be lubricated and checked before operation. Regular maintenance helps keep pelletizing stable over daily use.

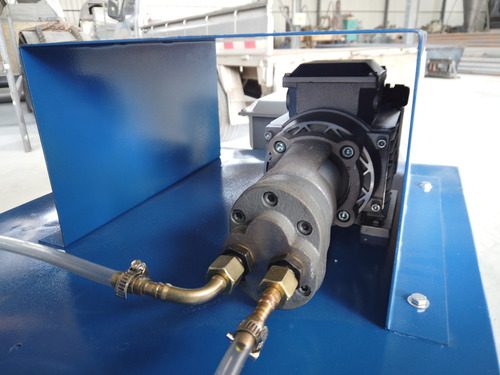

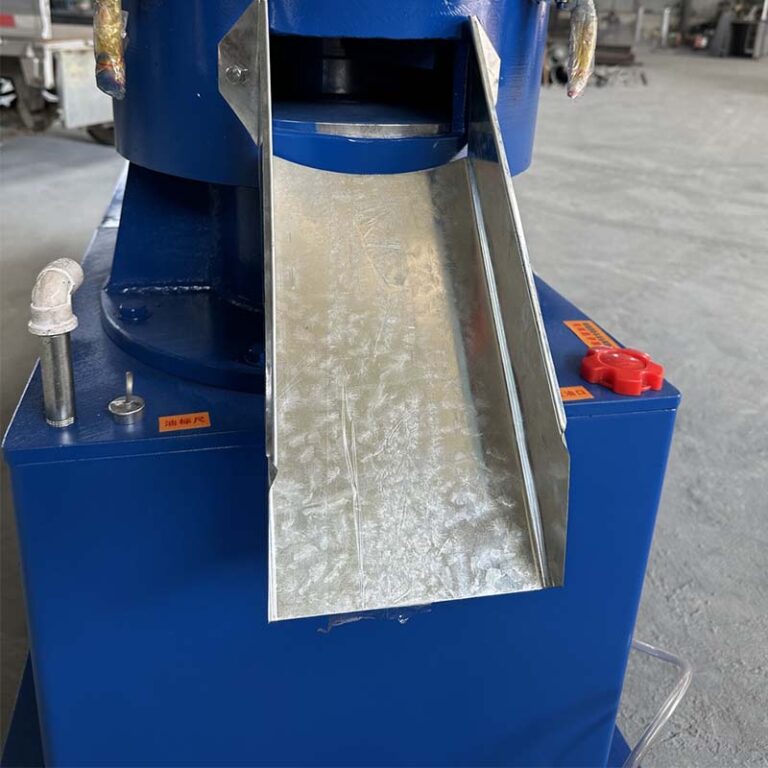

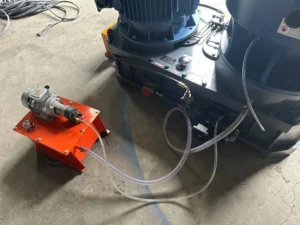

Lubrication points are arranged for routine maintenance. Use the confirmed oil type and maintenance interval according to the machine manual and working load.

Feed Pellet Machine Model and Capacity Reference

Use these typical TCF model ranges as a starting point. Actual output depends on raw material condition, formula, moisture, pellet diameter, die and roller condition, feeding stability and operating method.

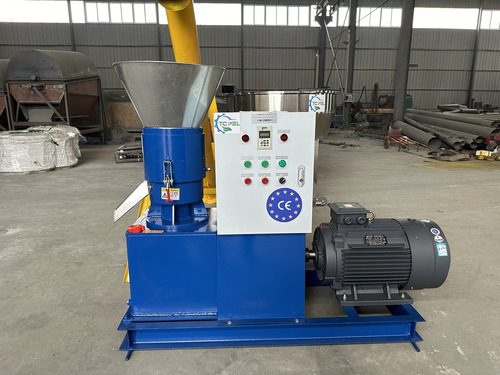

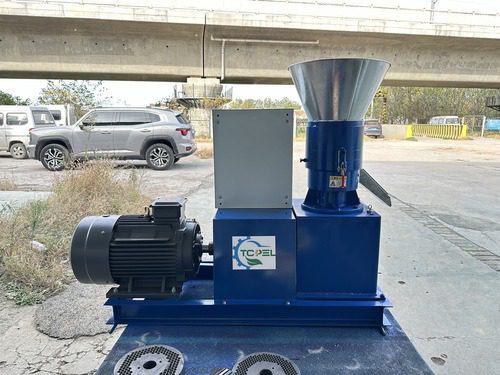

TCF250: 15kW, typical 400-600 kg/h, small farm feed production.
TCF300: 22kW, typical 800-1000 kg/h, medium poultry and livestock feed.
TCF350: 30kW, typical 1000-1200 kg/h, commercial livestock feed processing.

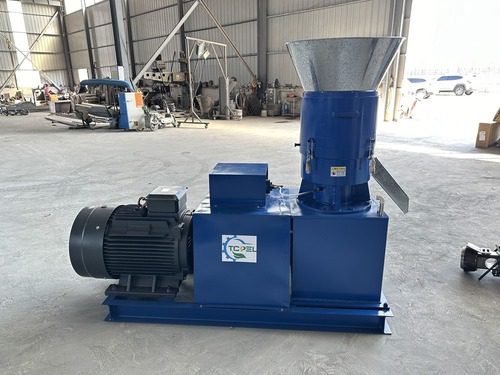

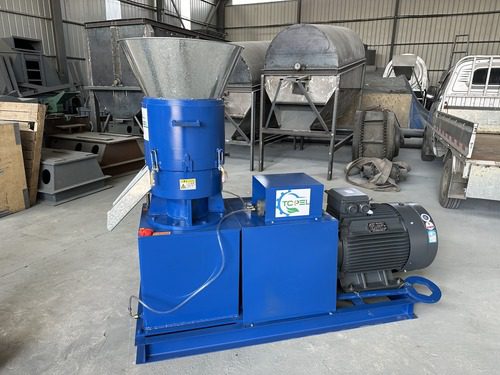

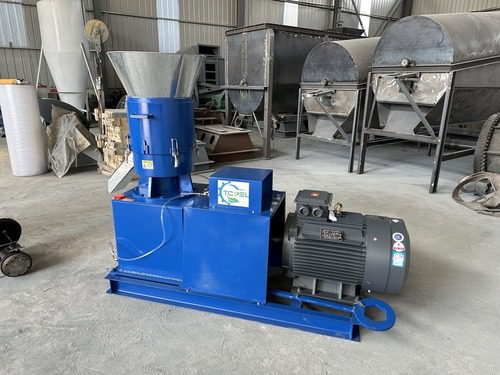

TCF400: 37kW, typical 1400-2000 kg/h, large farm and local feed supplier.
TCF550: 90kW, around 3 t/h, higher capacity feed pellet project.

الطراز	السعة	نوع الأسطوانة	الطاقة	الجهد (فولت)	الوزن	الأبعاد (مم)

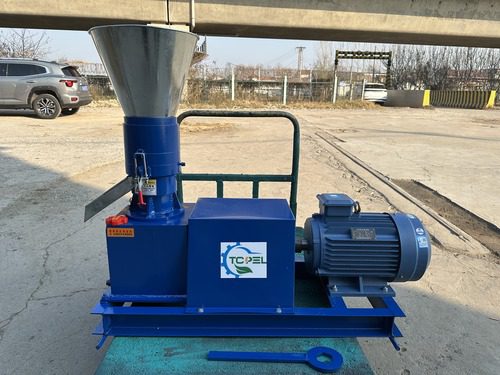

TCF150	150-200 كجم/ساعة	بكرتان مائلتان مائلتان	7.5 كيلو واط	380 فولت ， 50/60 هرتز، 3 مراحل	190 كجم	1220620840
TCF200	300-400 كجم/ساعة	بكرتان مائلتان مائلتان	11 كيلو وات	380 فولت ， 50/60 هرتز، 3 مراحل	270 كجم	14206701100
TCF250	600-800 كجم/ساعة	بكرتان مائلتان مائلتان	15 كيلو وات	380 فولت ， 50/60 هرتز، 3 مراحل	480 كجم	16607401220
TCF300	800-1000 كجم/ساعة	بكرتان مائلتان مائلتان	22 كيلو وات	380 فولت ， 50/60 هرتز، 3 مراحل	650 كجم	18308801560
TCF350	1000-1200 كجم/ساعة	بكرتان مائلتان مائلتان	30 كيلو وات	380 فولت ， 50/60 هرتز، 3 مراحل	750 كجم	19609201680
TCF400	1400-2000 كجم/ساعة	بكرتان مائلتان مائلتان	37 كيلو وات	380 فولت ， 50/60 هرتز، 3 مراحل	900 كجم	25509801600
TCF450	2000-2500 كجم/ساعة	بكرتان مائلتان مائلتان	45 كيلو وات	380 فولت ， 50/60 هرتز، 3 مراحل	1500 كجم	278011001700
TCF550	2500-3500 كجم/ساعة	بكرات ثلاثية مائلة	75 كيلو وات	380 فولت ， 50/60 هرتز، 3 مراحل	1800 كجم	290013001900

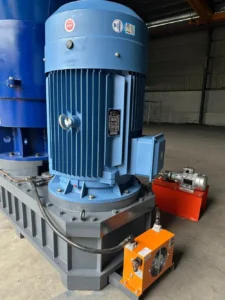

TCF650	3000-4000 كجم/ساعة	بكرات ثلاثية مائلة	90 كيلو وات	380 فولت ， 50/60 هرتز، 3 مراحل	2100 كجم	295015002000
TCF700	4000-5000 كجم/ساعة	بكرات ثلاثية مائلة	110 كيلو واط	380 فولت ， 50/60 هرتز، 3 مراحل	2500 كجم	300016002100
TCF800	5000-6000 كجم/ساعة	بكرات ثلاثية مائلة	132 كيلو وات	380 فولت ， 50/60 هرتز، 3 مراحل	2900 كجم	315018002200

About TCPEL Feed Pellet Equipment

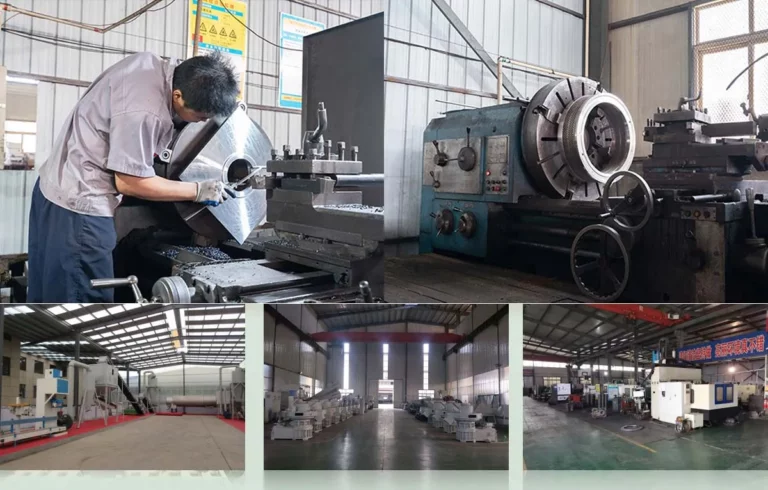

TCPEL manufactures pellet equipment for feed and biomass projects, with support for model selection, production line configuration, machine testing and export packing. For feed pellet projects, buyers normally confirm raw material, target capacity, pellet diameter, voltage, working hours and destination port before quotation.

Why Choose TCPEL for Feed Pellet Machines?

Practical Model Selection

We recommend models according to formula, output requirement, pellet diameter, working hours and site conditions.

Machine Testing Before Delivery

Machine configuration, die and roller installation, lubrication and basic running condition are checked according to the confirmed order scope.

Single Machine or Complete Line

The machine can be supplied alone or combined with crusher, mixer, conveyor, cooler, screener and packing machine.

Export Support

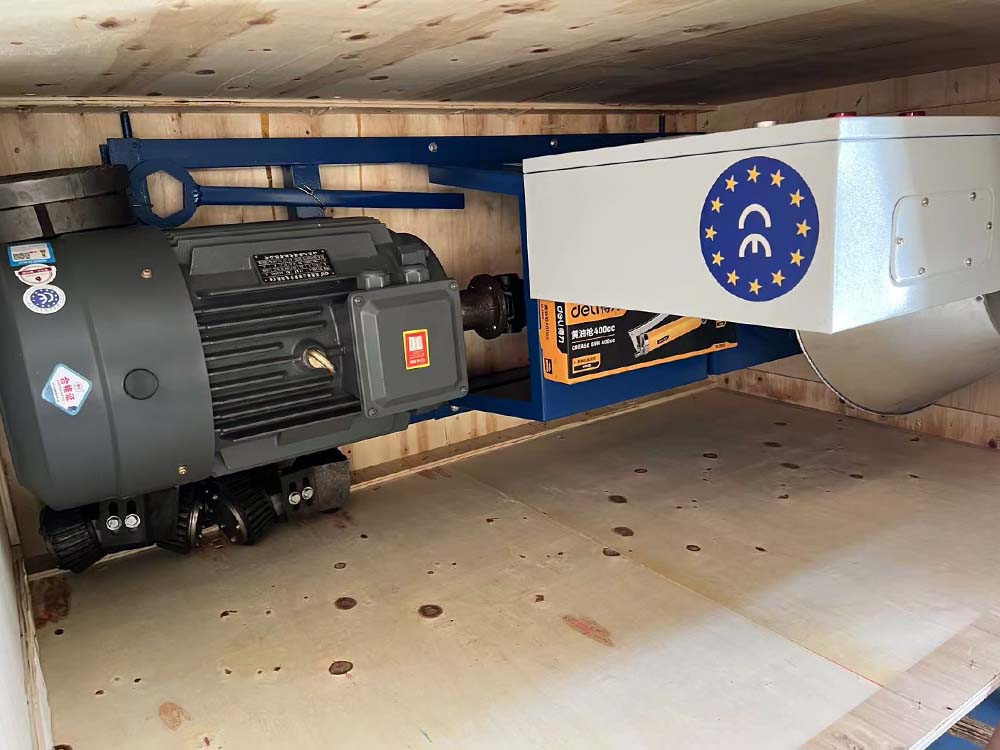

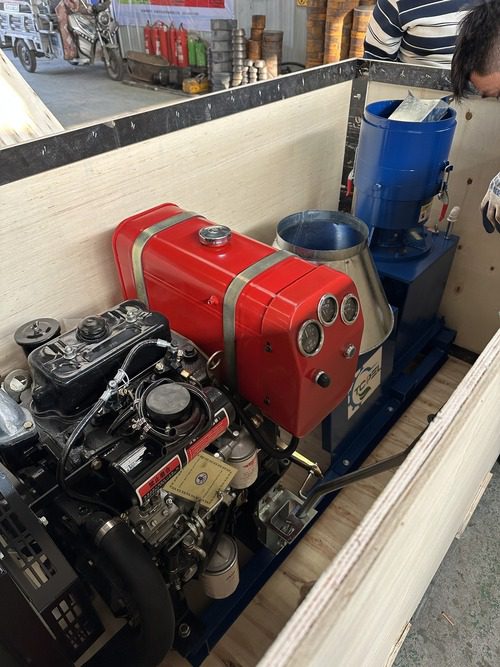

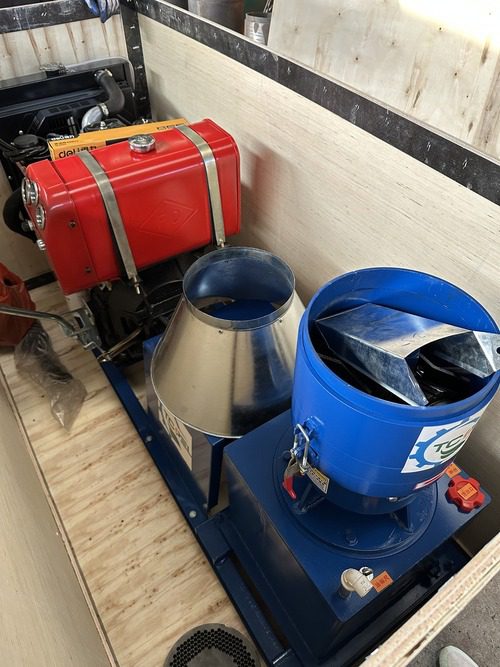

Packing, shipping marks and basic operation guidance can be prepared according to the confirmed order and destination.

Operation Guidance

TCPEL can provide basic operation guidance, maintenance notes and machine photos or videos when required for shipment confirmation.

Quotation Information

Send raw material, required capacity, pellet diameter, voltage, working hours and destination port for a clearer model or line recommendation.

Feed Pellet Machine Beginner Guide

Read Feed Pellet Machine Guide

What Is a Feed Pellet Machine?

A feed pellet machine compresses prepared feed ingredients into uniform pellets for poultry, cattle, sheep and other livestock. Before pelletizing, raw materials should normally be crushed to a suitable powder size, mixed evenly and adjusted to the right moisture range for the selected die.

How a Feed Pellet Machine Works

The basic process is crushing, mixing, steady feeding, pelletizing through the die, cooling, screening and packing. The pellet machine presses the prepared mash through die holes, while roller pressure, material moisture and die diameter influence pellet shape, output and stability.

Feed Pellet Machine Types

Flat die and ring die machines are used for different production scales. Flat die machines are commonly selected for farm, test and lower-capacity projects. Ring die machines are usually selected for larger industrial feed mills. For TCPEL inclined roller TCF machines, model selection should be based on formula, target capacity, pellet diameter, voltage and operating hours.

How to Choose a Feed Pellet Machine

Raw material: Confirm corn, soybean meal, bran, grass powder, straw powder, rice husk powder or other ingredients.
Target capacity: Match model capacity with daily working hours and required output.
Pellet diameter: Select the die according to animal type, age and feeding practice.
Power and voltage: Confirm local voltage, frequency and site electrical conditions before quotation.
Line configuration: Decide whether you need only the pellet machine or a complete line with crusher, mixer, conveyor, cooler, screener and packing machine.

Typical Model Reference

TCPEL TCF series model references include TCF250, TCF300, TCF350, TCF400 and TCF550. Typical output ranges from 400-600 kg/h to around 3 t/h, depending on raw material formula, powder size, moisture, pellet diameter, die and roller condition, feeding stability and operator experience.

Quotation Information

Before quotation, send raw material, required capacity, pellet diameter, voltage, working hours and destination port. TCPEL can recommend a suitable single machine or complete feed pellet production line configuration according to the confirmed project scope.

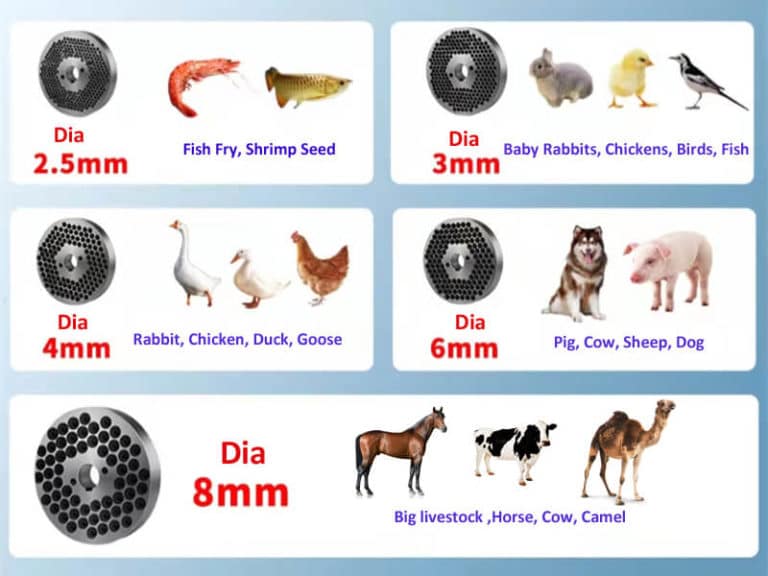

Pellet Diameter Guidance for Animal Feed

Pellet diameter should match animal type, age, formula and local feeding practice. Chicken feed commonly uses smaller pellets, while sheep and cattle feed often uses larger diameters. Send the target animal, formula and pellet size requirement so the die and machine model can be checked together.

Feed Pellet Applications and Line Options

TCPEL feed pellet machines can process prepared feed materials for poultry and livestock projects. For related applications, see ماكينة كريات العلف الحيواني, Cattle Feed Pellet Machine و Chicken Feed Pellet Machine.

Animal feed pellet production video

View the feed pellet application test in an on-page player.

A simple feed pellet line can include a mixer, screw conveyor and feed pellet machine. A commercial line may also include مطحنة المطرقة, cooler, screener and ماكينة تعبئة الحبيبات.
