Pellet Making Machines for Biomass, Feed and Manure

Brand :

TCPEL

Model :

TCZL700

Catagory :

Vertical Ring Die Pellet Making Machine

Capacity :

2-2.5t/h

Price Range :

$30000-$35000 based on configuration

Payment Term :

T/T/Visa/Mastercard/American Express/Discover cards

Delivery Time :

15days after get deposit payment

Pellet making machine working video

View the pellet machine working process in an on-page player.

Pellet production test video

View the pellet production test in an on-page player.

Pellet Making Machine Selection Overview

TCPEL supplies pellet making machines for biomass, animal feed, organic manure and complete pellet production line projects. Buyers can choose flat die, vertical ring die or feed pellet equipment according to raw material, target capacity, pellet diameter, moisture and plant layout.

This page works as a pellet machine selection hub. If you already know the application, you can also compare feed pellet machines, flat die pellet machines and complete pellet line options.

Pellet Making Machine Applications and Features

Heavy-duty machine structure is used for continuous pellet production projects. Actual working hours and maintenance interval should be confirmed according to raw material and production load.

Common biomass materials include sawdust, wood chips, rice husk, EFB, palm shell, straw and similar prepared materials. Feed and manure projects require different formula and moisture control.

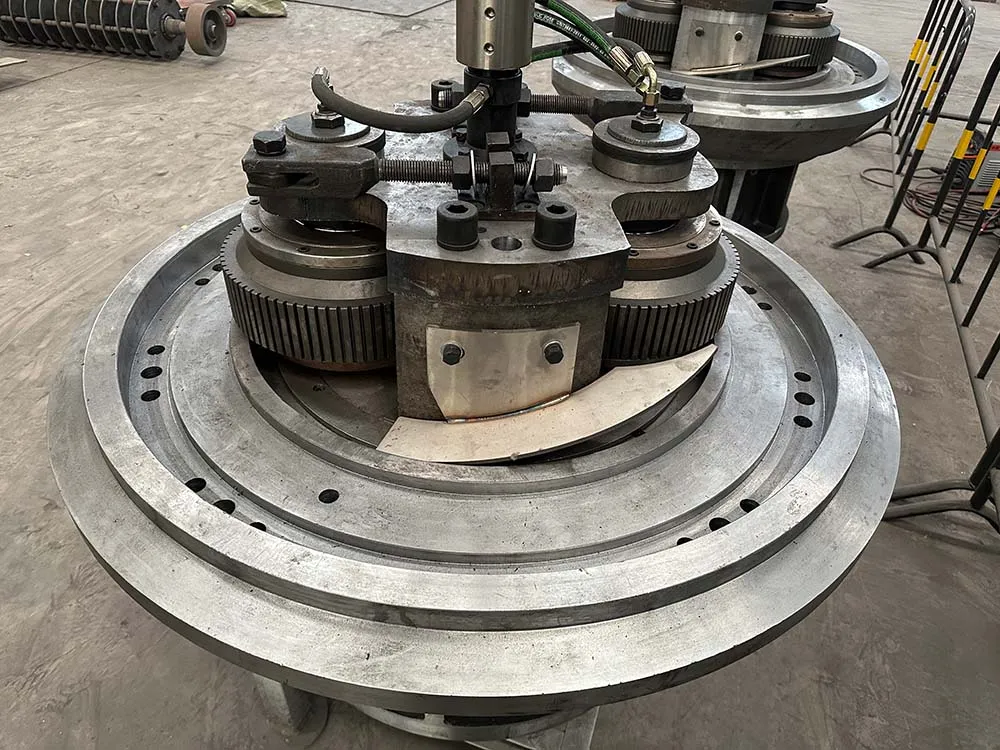

Ring die and roller life depends on raw material abrasiveness, moisture, feeding stability and maintenance. Die material and pellet diameter should be confirmed before production.

Cooling and air flow around the pelletizing area help support stable operation. Final cooling, screening and packing equipment depend on the production line layout.

Main shaft, gearbox and transmission parts should be checked and lubricated according to the operating schedule. Proper maintenance helps keep pellet quality stable.

Vertical ring die pellet machines are often selected for medium and large biomass pellet projects. For small batch production, a flat die pellet machine may be more suitable.

Example Ring Die Pellet Making Machine Parameters

The TCZL700 data below is an example reference for a vertical ring die pellet making machine. Final configuration should be confirmed by raw material, moisture, target output, pellet diameter, voltage and auxiliary equipment.

Example model	TCZL700
Machine type	Vertical ring die pellet making machine
Typical output	2-2.5 t/h, depending on raw material and operating condition
Main motor	160 kW
Pellet diameter	6 mm, 8 mm, 10 mm, 12 mm or confirmed by project
Ring die material	Stainless steel 4Cr13
Suitable project	Biomass pellet plant, fuel pellet production or complete line configuration

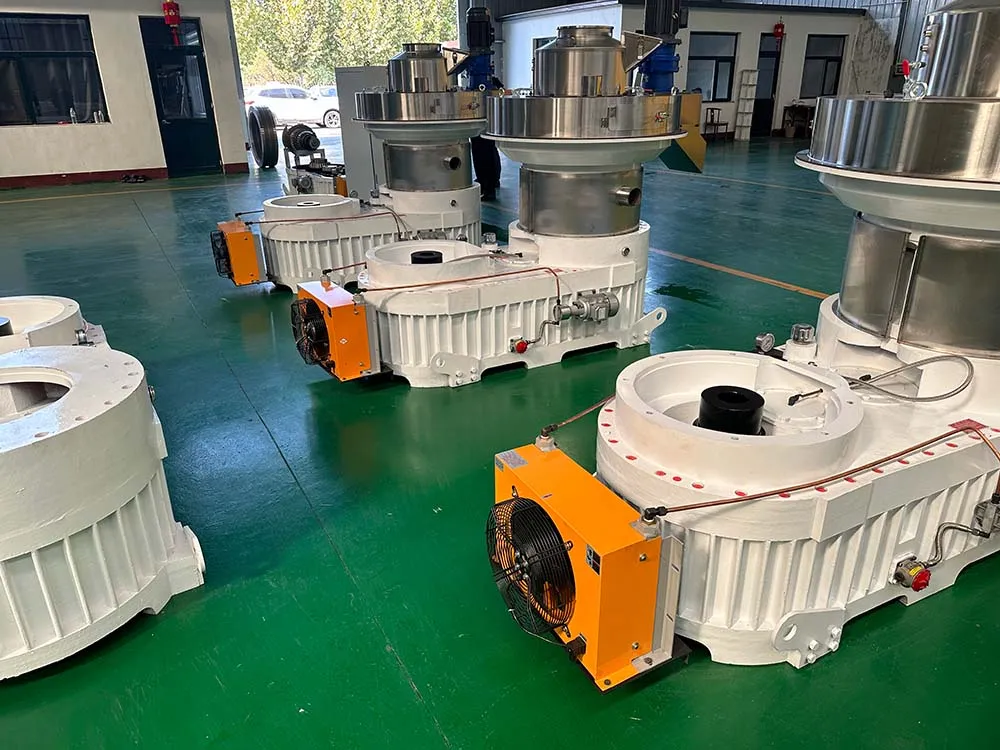

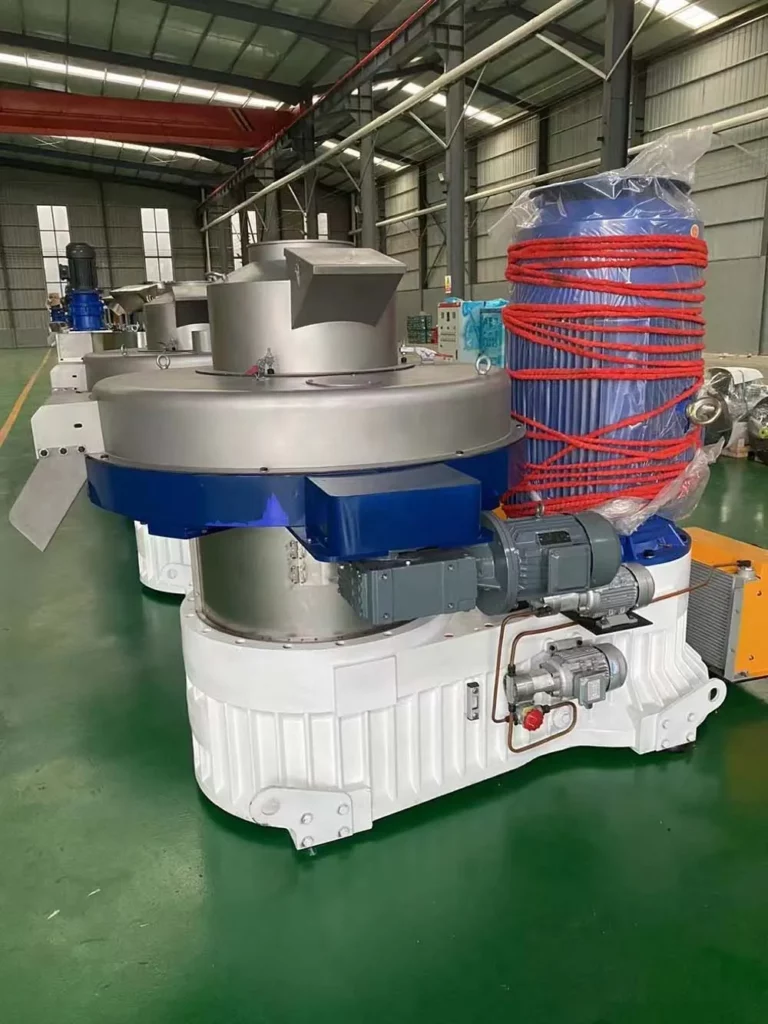

Pellet Making Machine Detailed Pictures

Pellet Making Machines Spare Parts

Pellet Making Machine Selection Guide

Read Pellet Making Machine Guide

What Are Pellet Making Machines?

Pellet making machines compress prepared powder or small particles into pellets. Depending on the project, the pellets may be used as biomass fuel, animal feed, organic fertilizer or other bulk pellet products.

Main Pellet Machine Types

Flat die pellet machine: often used for small production, farm use, test production or lower capacity projects.
Vertical ring die pellet machine: commonly used for medium and large biomass pellet production.
Feed pellet machine: selected for poultry, cattle, sheep and livestock feed pellet production.

How to Select a Pellet Making Machine

Start from the raw material and final pellet use. Then confirm moisture, particle size, required output, pellet diameter, electricity, working hours and whether the project needs drying, cooling, screening or packing equipment.

Single Machine or Complete Line

A single pellet machine may be enough when raw material is already crushed and moisture is suitable. A complete line may include crusher, dryer, mixer, conveyor, pellet machine, cooler, screener and packing machine.

What to Confirm Before Order

Before ordering, confirm machine model, die diameter, spare parts scope, voltage, packing, shipping marks and operation guidance according to the final order scope.

Information to Send Before Quotation

To recommend a suitable pellet making machine, send the following information:

Raw material name, photos or video.
Initial moisture and target final moisture.
Required capacity per hour and daily working hours.
Pellet diameter and final pellet use.
Voltage, installation country and destination port.
Whether you need only the pellet machine or a complete line.

Pellet Making Machine FAQ

What materials can pellet making machines process?

Prepared sawdust, wood chips, rice husk, straw, palm waste, feed formula powder and some organic manure materials can be used. Suitability depends on moisture, particle size and formula.

How do I choose between flat die and ring die pellet machines?

Flat die machines are usually used for small batch or farm projects. Ring die machines are more suitable for medium and large continuous production.

Do I need a dryer before the pellet machine?

A dryer is needed when raw material moisture is higher than the required pelletizing range. The target moisture depends on material and pellet use.

Can TCPEL provide a complete pellet production line?

Yes. A line can include crusher, dryer, mixer, pellet machine, cooler, screener, conveyor and packing machine according to project scope.

What should I send before quotation?

Send raw material, moisture, capacity, pellet diameter, voltage, site layout and destination port.
